WDGA 58E EtherNet/IP

Codeur rotatif absolu, magnétique, EtherNet/IP WDGA 58E
Connecteur bus : Connexion via connecteur 3x M12;

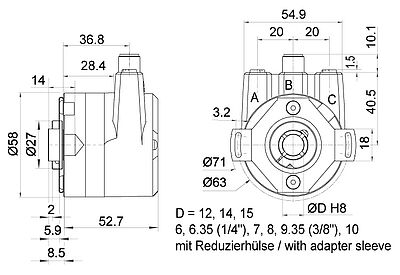

Arbre creux terminal
Boîtier : Ø 58 mm

16/43-bit monotour/multitours;
Arbre creux terminal : Ø 12 mm, 14 mm ou 15 mm;
Ø 6, 6.35 (1/4''), 7, 8, 9.525 (3/8''), 10 mm via douille de réduction;
Protocole : EtherNet/IP™
Classes: Position Sensor, DLR

Fiche techniqueGeneral technical Data and safety instructions absolute encoders WDGA Industrial Ethernet (PDF 210 kB)
Encoder EtherNet/IP WDGA 58E
Points forts
  • EtherNet/IP™, Conformance tested according to version CT-18
  • Compact design with bus cover
  • EnDra®: maintenance-free and environmentally friendly
  • Single-/Multiturn (max. 16 bit/43 bit)
  • 2 color duo LEDs to indicate operating status and bus status as well as 2 L/A LEDs
  • Highest bearing loads up to 80 N radial, 50 N axial
  • DLR (Device-Level-Ring) to increase system availability through redundant network communication
  • Full scalability thanks to round axis function, for binary and non-binary resolutions, as well as for non-complete multiturn rotations (gear calculation).
  • IP address individually via DHCP or predefined
  • Configurable via integrated web server:
    • IP address
    • Subnet mask
    • Gateway address
    • Encoder parameters readable
    • Firmware update
Détails produit
Bride
Arbre creux terminal
Boîtier
Ø 58 mm
Boîtier en acier chromé, blindage magnétique
Résolution
Résolution monotour

jusqu'à 65.536 pas / 360° (16 bits)

Résolution multitours

43 bits

Arbre
Ø 6 mm
Information: via douille de réduction
Longueur de l'arbre: L : 12 mm
Profond.de pénétration min.: 9,5 mm
Profond. de pénétration max.: 14 mm
Charge rad. max. sur l'arbre: 80 N
Charge ax. max. sur l'arbre: 50 N
Ø 6,35 mm
Information: via douille de réduction
Longueur de l'arbre: L : 12 mm
Profond.de pénétration min.: 9,5 mm
Profond. de pénétration max.: 14 mm
Charge rad. max. sur l'arbre: 80 N
Charge ax. max. sur l'arbre: 50 N
Ø 7 mm
Information: via douille de réduction
Longueur de l'arbre: L : 12 mm
Profond.de pénétration min.: 9,5 mm
Profond. de pénétration max.: 14 mm
Charge rad. max. sur l'arbre: 80 N
Charge ax. max. sur l'arbre: 50 N
Ø 8 mm
Information: via douille de réduction
Longueur de l'arbre: L : 12 mm
Profond.de pénétration min.: 9,5 mm
Profond. de pénétration max.: 14 mm
Charge rad. max. sur l'arbre: 80 N
Charge ax. max. sur l'arbre: 50 N
Ø 9,525 mm
Information: via douille de réduction
Longueur de l'arbre: L : 12 mm
Profond.de pénétration min.: 9,5 mm
Profond. de pénétration max.: 14 mm
Charge rad. max. sur l'arbre: 80 N
Charge ax. max. sur l'arbre: 50 N
Ø 10 mm
Information: via douille de réduction
Longueur de l'arbre: L : 12 mm
Profond.de pénétration min.: 9,5 mm
Profond. de pénétration max.: 14 mm
Charge rad. max. sur l'arbre: 80 N
Charge ax. max. sur l'arbre: 50 N
Ø 12 mm
Longueur de l'arbre: L : 12 mm
Profond.de pénétration min.: 9,5 mm
Profond. de pénétration max.: 14 mm
Charge rad. max. sur l'arbre: 80 N
Charge ax. max. sur l'arbre: 50 N
Ø 14 mm
Longueur de l'arbre: L : 12 mm
Profond.de pénétration min.: 9,5 mm
Profond. de pénétration max.: 14 mm
Charge rad. max. sur l'arbre: 80 N
Charge ax. max. sur l'arbre: 50 N
Ø 15 mm
Longueur de l'arbre: L : 12 mm
Profond.de pénétration min.: 9,5 mm
Profond. de pénétration max.: 14 mm
Charge rad. max. sur l'arbre: 80 N
Charge ax. max. sur l'arbre: 50 N
Vitesse de fonctionnement max.
6000 tr/min.
Tension de service
10 VDC jusqu'à 32 VDC
Consommation interne: typ. 125 mA
Puissance absorbée: typ. 3 W
Température de travail
-40 °C à +85 °C
Température de stockage
-40 °C à +100 °C
Protection
IP65 intégrale
Information

General information about EtherNet/IP

EtherNet/IP Conformance Tested according to version CT-18
EtherNet/IP Specification Vol 2, Ed 1.29
CIP Specification Vol 1, Ed 3.31

Adjustable parameters

  • Number of steps per revolution
  • Number of revolution
  • Scalin
  • Direction of rotation
  • CAMs
  • Gear Ratio
  • Preset
  • Counting direction
  • Resolution
  • Unit Speed
  • IP address
  • Position
  • Position Limit
  • Warning messages ("Frequency Exceeded" and "Position Limits Exceeded")



Objects (CIP Objects)

  • Identity Object
  • Message Router
  • Assembly Object
  • Connection Manager
  • Position Sensor Object
  • Qos Object
  • TCP/IP Interface Object
  • EtherNet Link Object



EtherNet/IP Features

  • DLR (Device Level Ring) possible
  • Qos (Quality of Service) possible
  • ACD (Address Conflict Detection)
  • Multicast and unicast capability



Licensing declaration
IP >= V1.00

 Licensing declaration

Désignation
BI2Connecteur bus avec 3x M12x1
Affectations des bornes
Connecteur femelle (Port1)M12x1, 4-pôles, codé D
Tx+1
Rx+2
Tx-3
Rx-4
Connecteur (Power)M12x1, 4-pôles, codé A
(+) Vcc1
n. c.2
GND3
n. c.4
Connecteur femelle (Port2)M12x1, 4-pôles, codé D
Tx+1
Rx+2
Tx-3
Rx-4
