Système de mesure - Recopie de mesures pour ascenceurs numérique à courroie mobile Silent Move Compact WDGMSMZK

Jusqu'à une hauteur de 120 mètres

Fiche technique
Points forts
  • Guided belt measuring system
  • Compact design
  • Absolute position of elevator car
  • Optimized silencing
  • Can be combined with many WDGA 58B or WDGI 58B

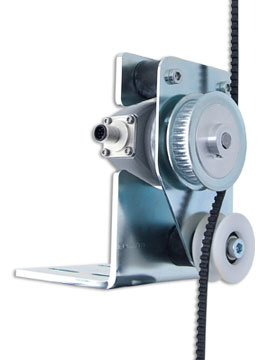

Wachendorff has succeded to fit the electronics and mechanics of the revolving toothed belt system to your belongings, no more, no less.

The intelligent construction with encoders, preassembled toothed pulley and idler pulley and the optimally dimensioned vibration dampers ensure maximum operational reliability and easy installation.

The very smooth-running special toothed belt is securely guided out of the toothed pulley and tensioning roller. The open design minimizes the work steps of the assembly and simplifies the safe insertion of the toothed belt.

While designing the Silent Move Compact, we were fully oriented to your needs. Reduced to the essentials to save costs and space without losing sight of reliability, accuracy and robustness. Thanks to the open system and the mounting brackets with its four slotted holes, an optimal attachment to the elevator cabin is easily possible.

The pre-assembled tensioning roller prevents adjustment during operation and eliminates the need to adjust the tensioning roller during assembly because the correct tension of the toothed belt is ensured by the supplied spring.

Détails produit
Hauteur max.
120 mètres
Vitesse
jusqu'à 4 m/s
Résolution

Codeur rotatif absolu WDGA58B Multitours, avec interface CANopen :
4 096 (12 bits) pas/tour et 262 144 (18 bits Multitours) rotations,

Interface CANopen-LIFT :
4 096 (12 bits) pas/tour et 262 144 (18 bits Multitours) rotations

Courroie / câble
Courroie dentée auto-guidante
Silent Move Compact Digital shaft copying
Silent Move Compact

Digital shaft copying

Silent Move Compact - Lift Car Positioning System
Silent Move Compact - Lift Car Positioning System

Especially designed for medium sized building applications

Solutions for lifts
Solutions for lifts

  • Digital shaft copying
  • Installation kits
  • Encoders
  • Made in Germany

Position measurement in elevator technology
Position measurement in elevator technology

Encoder WDGA58B CANopen LIFT with 9-pin D-SUB connector

Codeurs et systèmes de mesure
Codeurs et systèmes de mesure

  • Codeurs incrémentaux et absolus
  • Systèmes Feedback moteur
  • Systèmes de mesure de déplacement
  • Recopie de mesures pour ascenceurs
  • Fabrication Allemande

Délais de livraison et service
Délais de livraison et service

de Wachendorff Automation GmbH & Co. KG

Mounting instruction WDGMSMZK
Instructions de montage WDGMSMZK

pour copiage de gaine numérique à courroie mobile  Silent Move Compact.
